Spring

230206 Spring mybatis 실습

주영재 2023. 2. 6.

mybatis-config.xml, BoardVO.java, MySQL

더보기

mybatis-config.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE configuration
 PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
 "http://mybatis.org/dtd/mybatis-3-config.dtd">

 <!-- 마이바티스 부연 설정.  -->
 <configuration>
 	<typeAliases>
		<typeAlias type="com.simple.command.ScoreVO" alias="ScoreVO"/>
		<typeAlias type="com.simple.command.BoardVO" alias="BoardVO"/>
 	</typeAliases>
 </configuration>



BoardVO.java

package com.simple.command;

public class BoardVO {

	private int num;
	private String name;
	private String title;
	private String content;

	public BoardVO() {}

	public BoardVO(int num, String name, String title, String content) {
		super();
		this.num = num;
		this.name = name;
		this.title = title;
		this.content = content;
	}

	public int getNum() {
		return num;
	}

	public void setNum(int num) {
		this.num = num;
	}

	public String getName() {
		return name;
	}

	public void setName(String name) {
		this.name = name;
	}

	public String getTitle() {
		return title;
	}

	public void setTitle(String title) {
		this.title = title;
	}

	public String getContent() {
		return content;
	}

	public void setContent(String content) {
		this.content = content;
	}

	@Override
	public String toString() {
		return "BoardVO [num=" + num + ", name=" + name + ", title=" + title + ", content=" + content + "]";
	}


}



MySQL

create table board (
 num int primary key auto_increment,
 name varchar(30) not null,
 title varchar(30) not null,
 content varchar(300) not null
 );

 insert into board(name,title,content) values("테스터","테스트","테스트용입니당");
 insert into board(name, title, content) values("공이","두번째","두번째입니다.");
 select * from board;





boardRegister.jsp, boardList.jsp, boardResult.jsp

더보기

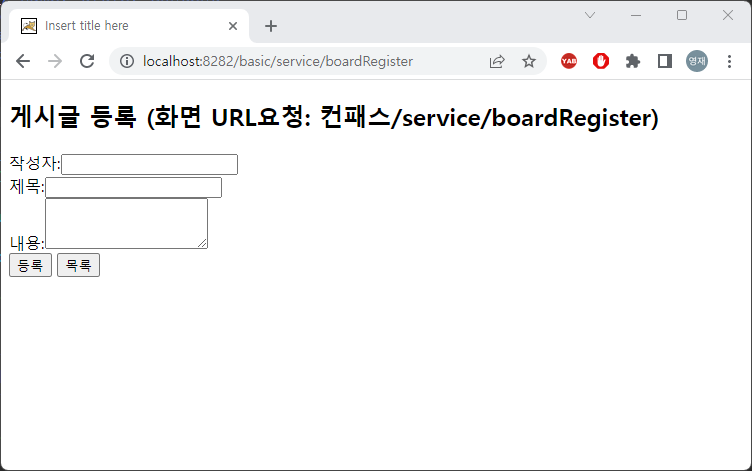

boardRegister.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
	pageEncoding="UTF-8"%>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>
	<%--
	0.테이블 생성 num, name, title, content
	1.BoardServiceController 를 생성하세요.
	2.다음 화면을 처리하는 메서드를 컨트롤러 에 생성하세요
	3.폼 태그 요청을 처리하는 메서드를 생성하세요.
	4.service계층 - 마이바티스 연동을 통해 게시글을 등록하는 작업을 처리하세요.
	5.등록 후에는 boardResult 페이지로 이동하세요.
	--%>

	<h2>게시글 등록 (화면 URL요청: 컨패스/service/boardRegister)</h2>
	<form action="boardRegist" method="post">

		작성자:<input name="name"><br>
		제목:<input name="title"><br>
		내용:<textarea rows="3" name="content"></textarea><br>

		<input type="submit" value="등록">

		<%--
		1.boardList 요청을 처리하는 메서드를 컨트롤러에 생성하세요.
		2.service계층 -마이바티스 연동을 통해 게시글 목록을 가지고 boardList 페이지로 이동하세요.
		3.boardList 페이지에서는 게시글 목록을 화면에 출력하세요
		--%>
		<input type="button" value="목록" onclick="location.href='boardList'">
	</form>


</body>
</html>

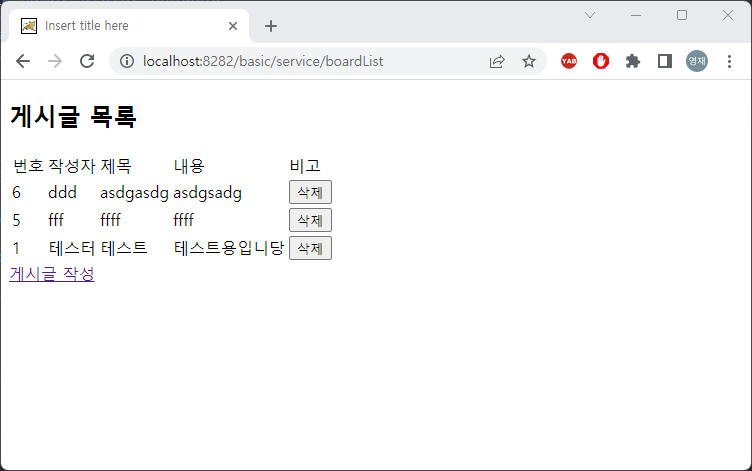

boardList.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c" %>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>

	<h2>게시글 목록</h2>

	<table>
		<tr>
			<td>번호</td>
			<td>작성자</td>
			<td>제목</td>
			<td>내용</td>
			<td>비고</td>
		</tr>

		<!-- 반복데이터처리 -->
		<c:forEach var="blist" items="${lists}" varStatus="num">
		<tr>
			<td>${blist.num}</td>
			<td>${blist.name}</td>
			<td>${blist.title}</td>
			<td>${blist.content}</td>
			<td><input type="button" value="삭제" onclick="location.href='deleteBoard?num=${blist.num}'"></td>
		</tr>
			</c:forEach>

			<!--
			1. boardDelete로 삭제 처리하세요.
			2. 삭제 후엔 목록화면으로 리다이렉트 하세요.
			-->
	</table>

	<%--게시글 작성페이지로 이동시키세요. --%>
	<a href="boardRegister">게시글 작성</a>




</body>
</html>

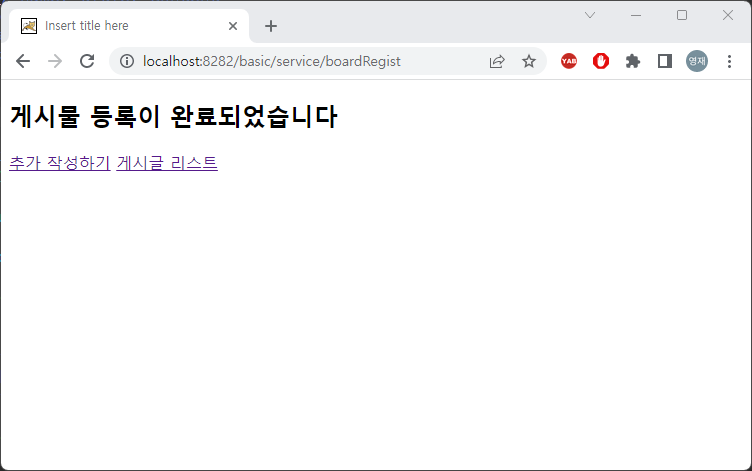

boardResult.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>
	<h2>게시물 등록이 완료되었습니다</h2>

	<a href="boardRegister">추가 작성하기</a>
	<a href="boardList">게시글 리스트</a>

</body>
</html>



BoardServiceController.java

package com.simple.controller;

import java.util.ArrayList;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;

import com.simple.command.BoardVO;
import com.simple.score.service.BoardService;

@Controller
@RequestMapping("/service")
public class BoardServiceController {

	@Autowired
	@Qualifier("boardservice")
	private BoardService bservice;

	//regist
	@RequestMapping("/boardRegister")
	public String showBoardRegister() {
		return "service/boardRegister";
	}


	@PostMapping("/boardRegist")
	public String boardRegist(BoardVO vo) {
		bservice.boardRegist(vo);
		return "service/boardResult";
	}

	//result
	@RequestMapping("/boardResult")
	public String boardResult() {
		return "service/boardResult";
	}


	//list
	@RequestMapping("/boardList")
	public String boardList(Model model) {
		ArrayList<BoardVO> list=bservice.getList();
		model.addAttribute("lists",list);
		return "service/boardList";
	}

	//delete
	@RequestMapping("/deleteBoard")
	public String deleteBoard(@RequestParam("num")int num) {
		bservice.boardDelete(num);
		return "redirect:/service/boardList";
	}

}



BoardService.java

package com.simple.score.service;

import java.util.ArrayList;

import org.springframework.stereotype.Service;

import com.simple.command.BoardVO;


public interface BoardService {

	public void boardRegist(BoardVO vo); //등록
	public ArrayList<BoardVO> getList(); //조회
	public void boardDelete(int num); //삭제

	//위 메서드를 구현하는 클래스 BoardServiceImpl을 생성하고 오버라이딩하세요
}





BoardServiceImpl.java

package com.simple.score.service;

import java.util.ArrayList;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import com.simple.board.mapper.BoardMapper;
import com.simple.command.BoardVO;

@Service("boardservice")
public class BoardServiceImpl implements BoardService{

	@Autowired
	private BoardMapper boardMapper;

	@Override
	public void boardRegist(BoardVO vo) {
		boardMapper.boardRegist(vo);
	}

	@Override
	public ArrayList<BoardVO> getList() {
		return boardMapper.getList();
	}

	@Override
	public void boardDelete(int num) {
		boardMapper.boardDelete(num);
	}

}

BoardMapper.java

package com.simple.board.mapper;

import java.util.ArrayList;

import org.apache.ibatis.annotations.Mapper;

import com.simple.command.BoardVO;
@Mapper //mybatis-scan
public interface BoardMapper {

	public void boardRegist(BoardVO vo); //등록
	public ArrayList<BoardVO> getList(); //조회
	public void boardDelete(int num); //삭제
}





BoardMapper.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper
  PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
  "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

  <mapper namespace="com.simple.board.mapper.BoardMapper">
  	<insert id="boardRegist">
  		insert into board(name,title,content)
  		values(#{name},#{title},#{content})
  	</insert>

  	<select id="getList" resultType="BoardVO">
  		select * from board order by num desc
  	</select>

  	<delete id="boardDelete">
  		delete from board where num=#{num}
  	</delete>


  </mapper>
